How to Add a Real Time Picture

Real-Time Pictures (RTP) in Proqio provide a powerful way to visually represent site conditions by displaying the latest uploaded images alongside live sensor data—offering contextual insight.

Proqio offers two distinct ways to visualize real-time images:

  • Static Picture with Data Overlays
  • Dynamic Picture with Graph
  • Move or relocate RTP on map

Adding Real Time Pictures is simple and powerful. Here’s how to do it:

1. Setting Up Static Picture with Data Overlays

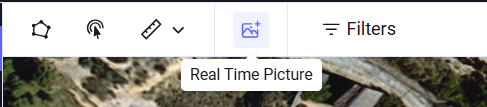

  1. Access RTP mode
    • From the top panel on the map interface, select the Real-Time Picture (RTP) option.

    Screenshot 2025-08-07 095440
  2. Activate selection tool
    • Click on Real-Time Picture. Your mouse pointer will now become a selection tool.
  3. Choose image location
    • Click on the desired spot on the map where you want the image to appear.
    • A single click will fix the image location.

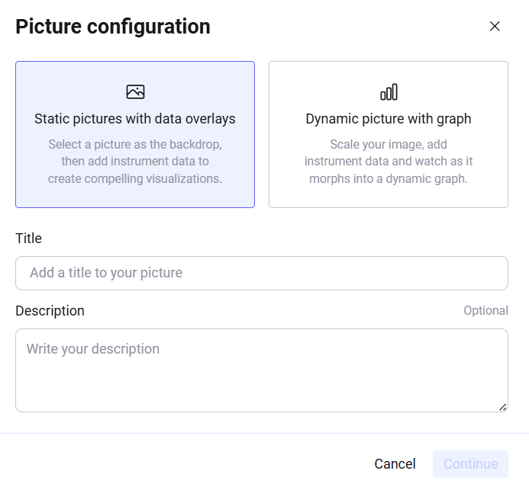

  4. Configure the picture
    • The Picture Configuration window will appear.
    Screenshot 2025-08-07 095623
  5. Select image type
    • You will get the following display options:
      • 📌 Static Picture with Data Overlays
      • 📊 Dynamic Picture with Graph
  6. Choose static configuration
      • In the Picture Configuration window, select Static Picture with Data Overlays as your image type.
  7. Add details
    • Enter a Title for the image.
    • Optionally, add a Description.
    • Click Continue.
  8. Upload your image
    • Browse and select an image from your system.
    • Open the image and click Continue to finalize the process. The image will appear on the map at the location you selected earlier.

    2. Setting Up a Dynamic Picture with Graph

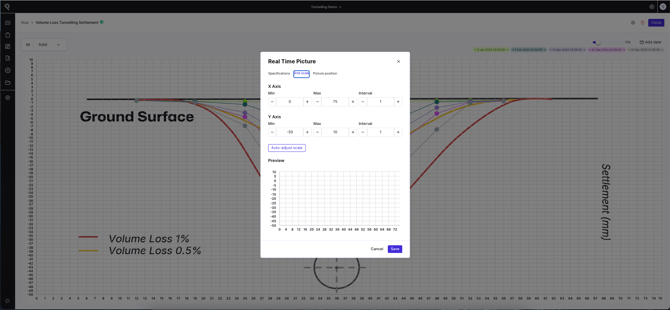

    1. Configure graph scale
      • In the Picture Configuration window, define the scale for your dynamic picture by setting the maximum and minimum values for both the X and Y axes.

      Captura de pantalla 2025-09-29 a las 11.55.16
    2. Proceed to image selection
      • Click Continue to move to the next step.
      • Select an image from your system and open it.

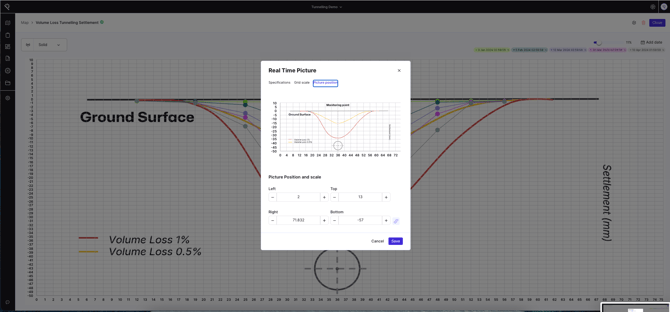

    3. Adjust picture position and scale
      • You’ll now see the picture position and scale interface.
      • Here, you can arrange and resize the image to fit your desired layout on the map.
      Captura de pantalla 2025-09-29 a las 11.55.26

    4. Finalize setup
    • Once satisfied with the positioning and scale, click Continue to complete the configuration

    Preserve Proportion (Important!)

    • Next to the Bottom field, you’ll notice a chain link icon Screenshot 2025-08-06 131920.
    • This icon is called Preserve Proportion and ensures the image maintains its original height-to-width ratio.
    • 🔒 Do not modify this icon—it automatically keeps the image proportionate.

    How to add Instruments on the Real Time Picture.

    Static Picture with Data Overlays

    Proqio allows you to enhance your static images by overlaying live instrument data—either during the initial image setup or later using the Edit feature.

    Add Instruments using the Edit option

    You can add instruments at any time by following these steps:

    1. Open the image for editing
      • Click on the image placed on the map to view it.
      • Select the Edit option from the top-left corner of the interface. Screenshot 2025-08-07 112408
    2. Choose your action

      • You’ll see two icons: Screenshot 2025-08-07 112624

        • Add InstrumentScreenshot 2025-08-06 124810
        • Insert Real-Time Picture image-png-Aug-06-2025-07-39-24-9553-AM

    3. Activate the selection tool

      • Click on the Add Instrument icon.
      • Your cursor will now become a selection tool.

    4. Place the instrument

      • Click on the desired location within the image.
      • This will fix the instrument’s position.

    5. Assign instrument details

      • Select the appropriate Category.
      • Choose the Instrument ID from the list.

    6. Finalize placement

      • Once selected, the instrument will appear on the image with its live data overlay.
      • You can view the data by clicking the instrument.



    Important Note:

    Once an instrument is placed on the image, its position cannot be moved.
    To reposition it:

    • Delete the existing instrument, by right click on the instrument.
    • Repeat the placement process at the required location.

    Bonus Feature: Insert Image Within Image

    Just like adding instruments, you can also embed another image using the Insert Real-Time Picture icon—ideal for layering or zoomed-in visuals.

    Dynamic Picture with Graph

    Enhance your dynamic image by overlaying live instrument data that syncs with graph axes. Follow these steps to configure and place instruments accurately.

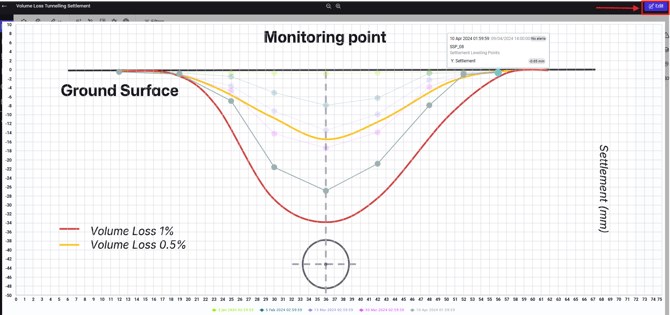

    Step 1: Open the image for editing

    • Click on the image already placed on the map to open it.
    • Select the Edit option from the top-left corner of the interface.

    Screenshot 2025-10-09 082403-01

    Step 2: Access the add instrument window

    • Click on the Add Instrument icon.
    Screenshot 2025-10-09 082538-01
    • This will open the Add Instrument configuration panel.

    Step 3: Configure instrument parameters

    The Add Instrument window includes the following fields:

    Parameter/Fields

    Purpose

    Category

    Select the instrument category (e.g., displacement, pressure).

    Instrument ID

    Choose the specific instrument to be placed.

    Data Field

    Select the data field to be displayed (e.g., Temp, Tilt-AxisA (SINA)...).

    Dynamic Axis

    Choose either X Axis or Y Axis using radio buttons.

    Add Second Dynamic Field

    Optionally include a second data field for comparison.

    X Position / Y Position

    Set the instrument’s location on the image based on axis

    selection.

    Axis & Position Logic

    Note: The Dynamic Axis selection directly affects how you set the instrument’s position:

    • If you select X Axis, you’ll define the Y Position.
    • If you select Y Axis, you’ll define the X Position.

    This ensures the instrument aligns correctly with the graph’s orientation.

    Screenshot 2025-08-07 112848

    Step 4: Finalize placement

    • Once all fields are filled in, click Add Instrument.
    • The instrument will be placed on the image and begin displaying real-time data in sync with the graph.



    Good To Know:

    Want to relocate an image or Move Picture, It’s quick and easy with Proqio:

    • Right-click on the image you want to move on the Map.
    • Choose the “Move” option from the menu Screenshot 2025-08-08 101320.
    • Click on your desired location on the map — the image will instantly shift to that spot.

    Frequently Asked Questions (FAQs)

    Q1: Can I add live instrument data to a static image?
    A: Yes! You can overlay live data during setup or later using the Edit option.

    Q2: Can I move an instrument after placing it?
    A: No. To reposition, you must delete the instrument and place it again.

    Q3: What happens if I modify or unlink "Preserve Proportion”?
    A: If you unlink Preserve Proportion it allows you to change image width and height independently. This may cause the image to look stretched or squashed as unlinking this option it will not automatically keep the image proportionate.

    Q4: What is the difference between Static and Dynamic Pictures?
    Static Pictures allow overlaying live data without graph scaling whereas Dynamic Pictures include graph axes and require scale configuration for X and Y axes.
