Configure Your Project Hierarchy

In Proqio, the Project Hierarchy lets you organize your monitoring in a way that mirrors your real-world operations. It allows administrators to create sites and groups withing the project, and assign roles that manage access to them—all from a single interface. This ensures that even complex, distributed monitoring programs remain structured, traceable, and easy to manage.

 Sites and Groups – How Do They Differ?

In Proqio, a Site represents a physical location or project area where monitoring activities are carried out. It could be a dam, tunnel, bridge, metro station, or any infrastructure asset being instrumented. Each site acts as the fundamental operational unit within the project hierarchy — containing the sensors, dataloggers, and telemetry nodes deployed on the ground.

A Group is a collection of sensors (same type or different) which are associated with one or more Sites.

Using sites and groups, you can customize access given to users. It gives you ability to give users access for certain sites and groups so they can only monitor the sensors within selected sites and groups.

How To Create Sites In Your Project

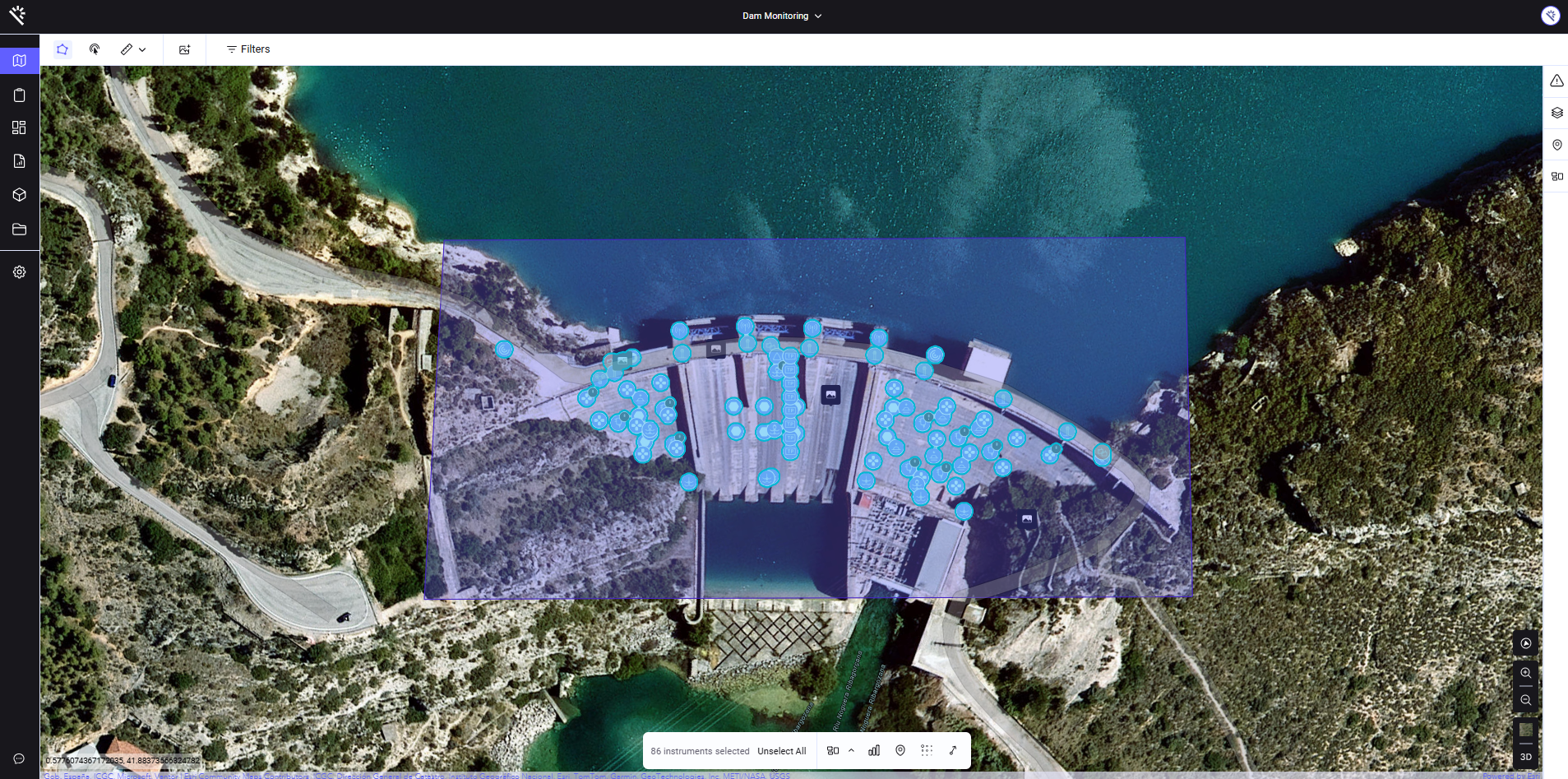

  • Use Area tool for selecting an area to create a site.
  • Select an area for the site.

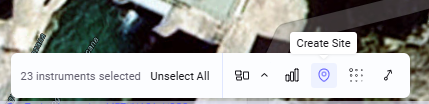

  • From the bottom tool bar, select the site icon to proceed with site creation.

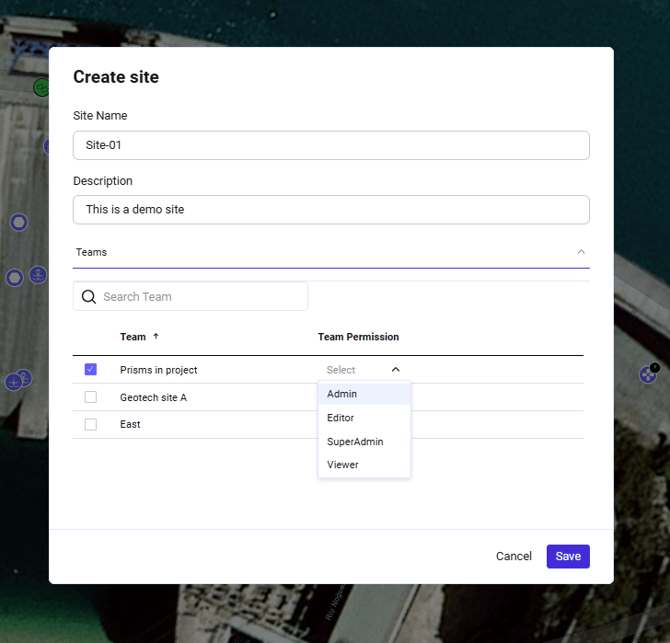

  • Enter the Site name, description and select the team to which you want to give access to this site. Further you may also select the permissions for that team on this site. Click on save to continue.

  • Sites can be accessed from the right panel.



If a new instrument is added to a location which is already covered under any site, that instrument will automatically get added to that site.



How to Create Groups in Your Project

  • Use Area or multi-selection tool to select the sensors which you want to put in a group.
  • After selection, from the bottom tool bar, select the group icon to proceed with group creation.

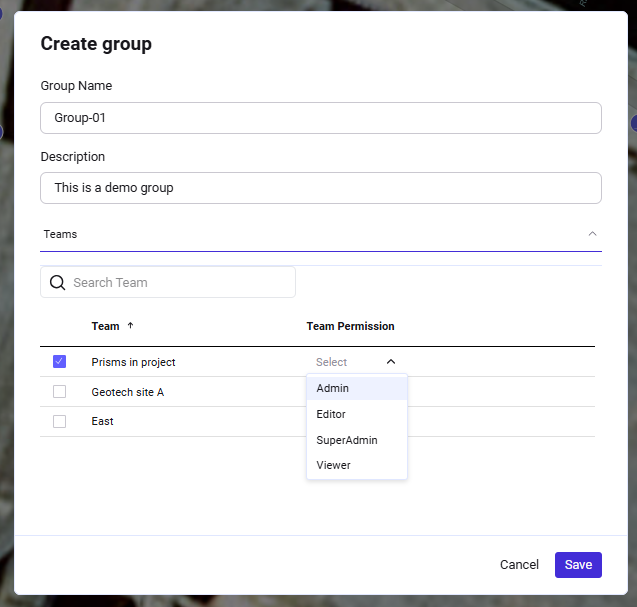

  • Enter the Group name, description and select the team to which you want to give access to this group. Further you may also select the permissions for that team on this site. Click on save to continue.

  • Groups can be accessed from the right panel.



Sites can be created using Area tool only, however groups can be created using area as well as multi-selection tool.

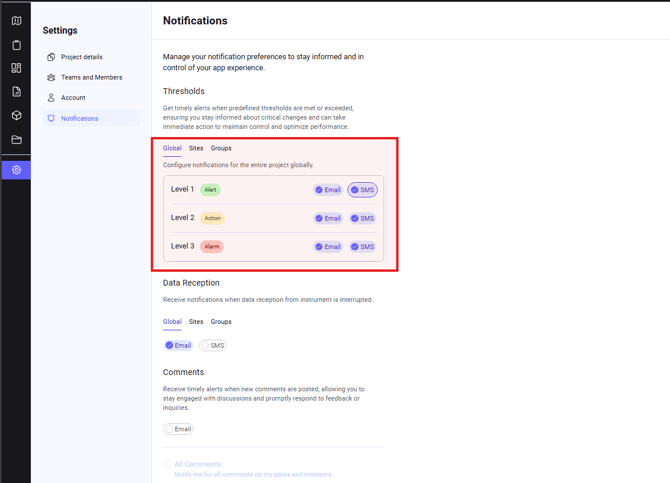

Notification configuration

To configure the notification for the sites and groups follow the below steps:

  • Go to settings
  • Select notifications



  • From notification tab, you may toggle the email and SMS notification.

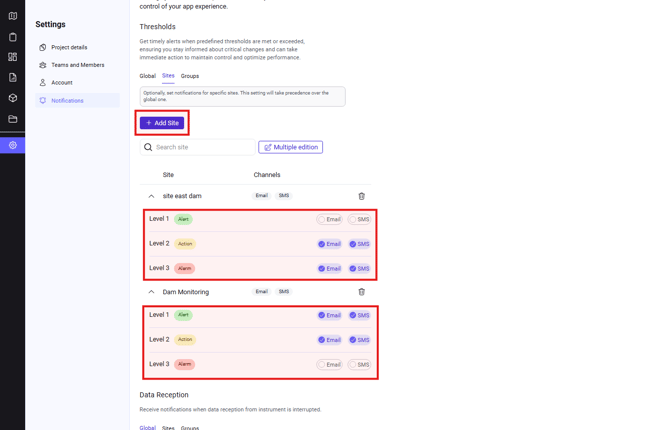

For sites and groups, you may customize the notifications for selected sites and groups. Add the sites and groups on which you want to customize notifications and then toggle them as requirement.
